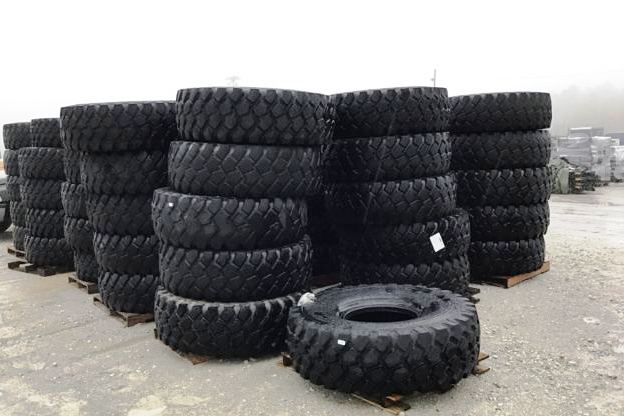

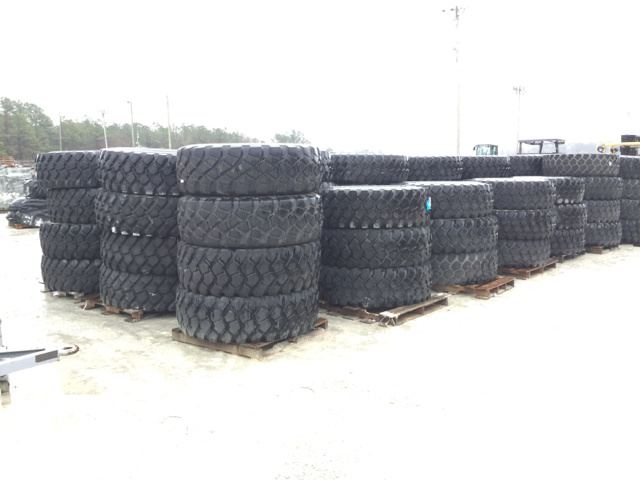

Tire Michelin XZL 16.00R20
Ply Rating: 22PR
Overall Diameter (in) 52.9
Overall Width (in) 17.2
treads 31/32 , spot flat with 20/32 tread
The all-terrain and all-position radial tire.
Self-cleaning, open shoulder tread design features offset elements to help enhance traction and floatation capabilities on varied terrains including snow, sand, mud and highway.
All-terrain, non-directional tread design for added versatility.
Full-width steel belts and elastic protector ply help provide extra casing protection against most off-road hazards.
Wheel MFR: 20076
Back spacing 8 3/4″
Front spacing 3 1/4″
Load 13.000 lb
Max tire pressure 105 psi
Center opening 10 3/4″
Bolt pattern 10×11″
Mounting hole 1 1/4″
work with the M900 Series trucks.
