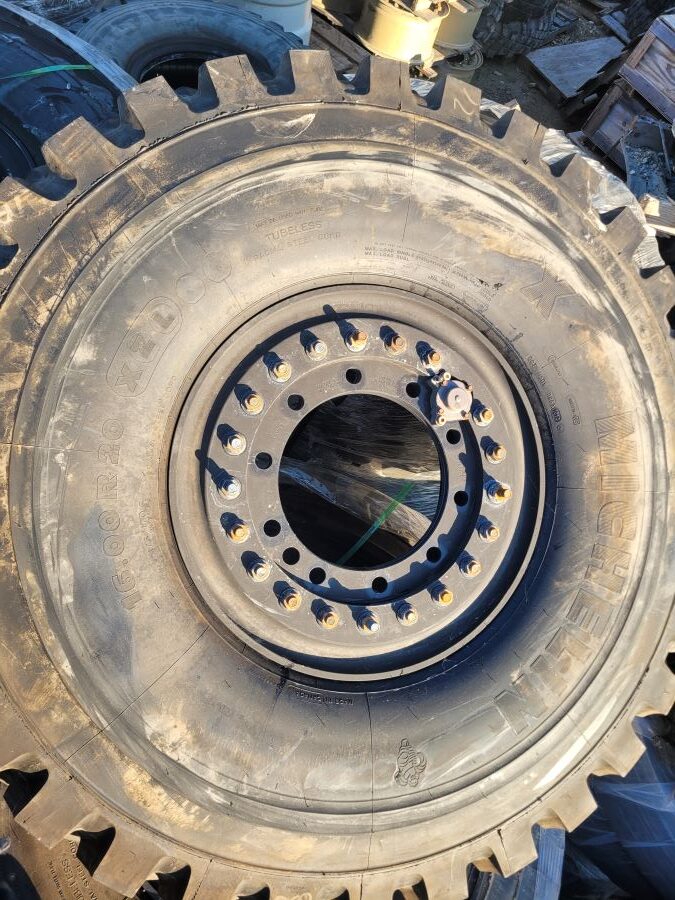

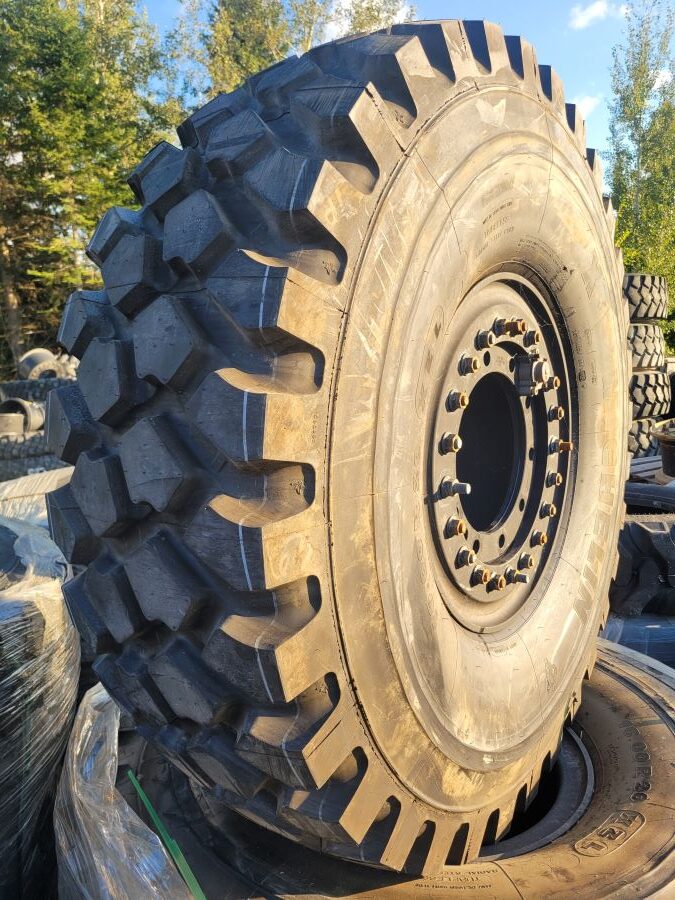

16.00R20 Michelin XZL on MRAP Wheel

The all-terrain and all-position radial tire.
Self-cleaning, open shoulder tread design features offset elements to help enhance traction and floatation capabilities on varied terrains including snow, sand, mud and highway.
All-terrain, non-directional tread design for added versatility.
Full-width steel belts and elastic protector ply help provide extra casing protection against most off-road hazards.

Tire 16.00R20 Michelin XZL

Ply Rating: 22PR

Overall Diameter (in) 52.9

Overall Width (in) 17.2

full treads 34/32

Wheel :

OSHKOSH MTVR Vehicles

Hutchinson 20 X 10 Complete 2 Piece 10 Hole Aluminum Wheel / Rim with CTIS (Central Tire Inflation System)

20” Diameter

10” Wide

Bolt Pattern: 10x 335mm

Hub Pilot (pilot hole/center bore ) 11.06” or  281mm

Load : 10000 lb

Dot Approved

Fits:

MRAP M1248m CMTV Caiman Multi Theater Vehicle BAE Caiman II Caiman 2, Unimog 1700

NSN# 2530-01-592-6682
