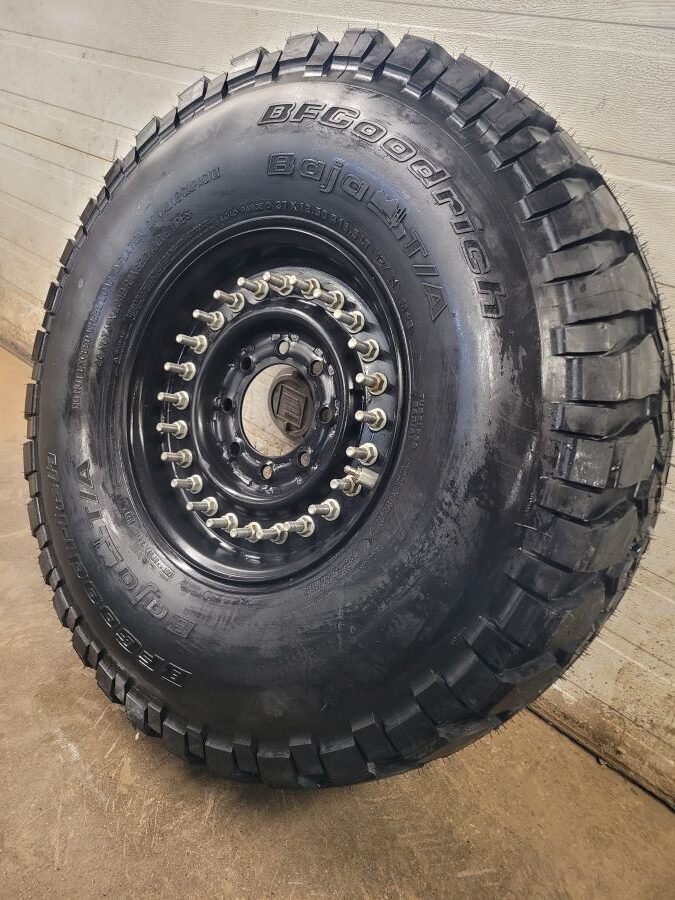

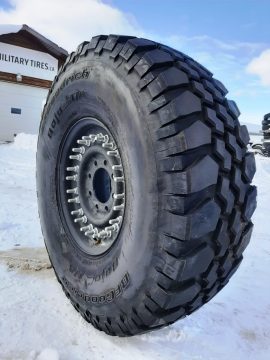

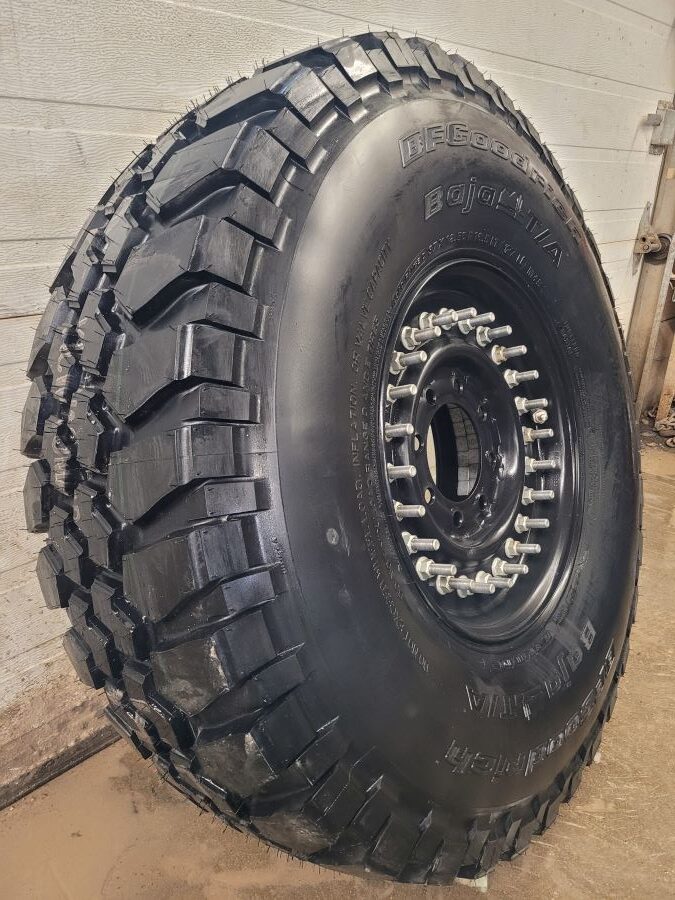

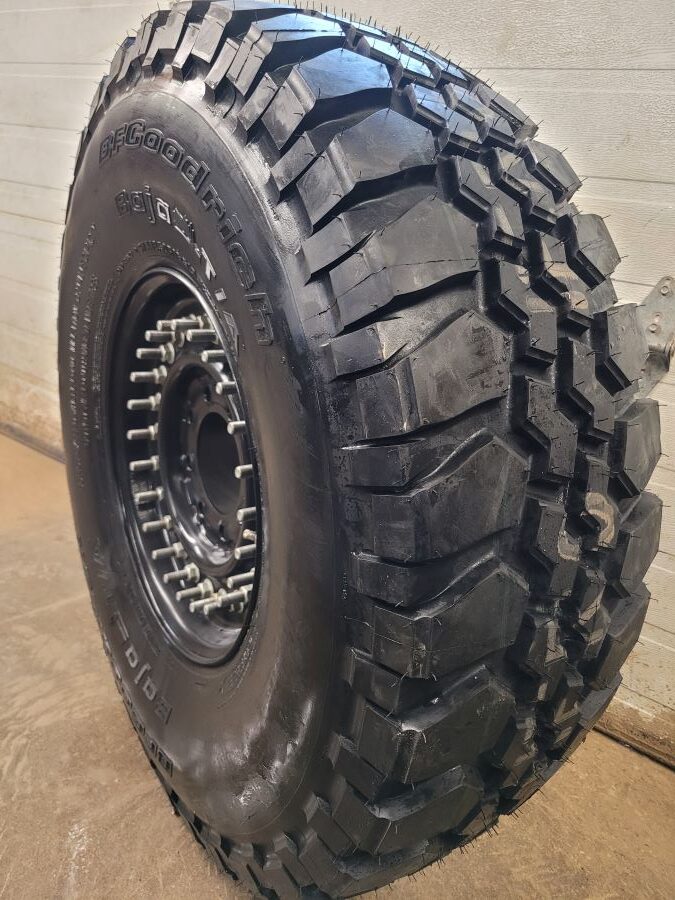

37×12.5R16.5 BFGoodrich Baja TA on Wheel

$140.00 – $515.00

DOT

tread depth

Clear

SKU: N/A Categories: Offroad/4X4, Tire/Wheel Assembly Tags: HMMWV 1 1/4 Ton M1025, M1025A1, M1025A2, M1026, M1026A1, M1035, M1035A1, M1035A2, M1037, M1038, M1038A1, M1042, M1043, M1043A1, M1043A2, M1044, M1044A1, M1045, M1045A1, M1045A2, M1046, M1046A1, M1097, M1097A1, M1097A2, M1121, M1123, M1151, M1151A1, M1167, M966, M966A1, M996, M996A1, M997, M997A1, M997A2, M998, M998A1

Tire Spec
Manufacturer	BFGoodrich
Tire Model	Baja T/A (LR E)
MFR Part #	33253
NSN Number	2610-01-563-8328
Tire Size	37×12.5R16.5LT
Overall Diameter	36.6″
Overall Width	12.4″
Static Loaded Radius	N/A
Approved Rims	8.25, 9.75
Max Load (Single)	4,540 LBS @ 65 psi
Max Load (Dual)	N/A
Min. Dual Spacing	N/A
Ply Type	Radial
Load Rating	E / 10 Ply-Rating
LI/SS	133 N
Max Speed	87 MPH

Tube Requirement	Tube or Tubeless
Tread Depth	18/32″ (@ New)

Weight	79 LBS

Wheel spec:

LOAD RANGE E

Wheel:WA-1167

Size:16.5 X 8.25

Offset:2.125 in [54.0 mm]

Mounting Pattern: 8 Holes on Ø6.5 in [165.1 mm] B.C.D.

Hub Bore: Ø in [ mm]

Load Rating: max 4540 lb @ 65 psi

Brand

BFGoodrich

Weight	150 lbs
Dimensions	37 × 37 × 12.5 in
Bolt Pattern	8-bolt
DOT	2006 and older, 2007-2012, 2013 and Newer
Rim Size	16.5"
Tire Height	37″
Tires Type	RADIAL
tread depth	up to 50% treads remaining, New, Used 60%-70% tread remaining, Used 75% – 90% tread remaining, Used 95%-100% tread remaining
